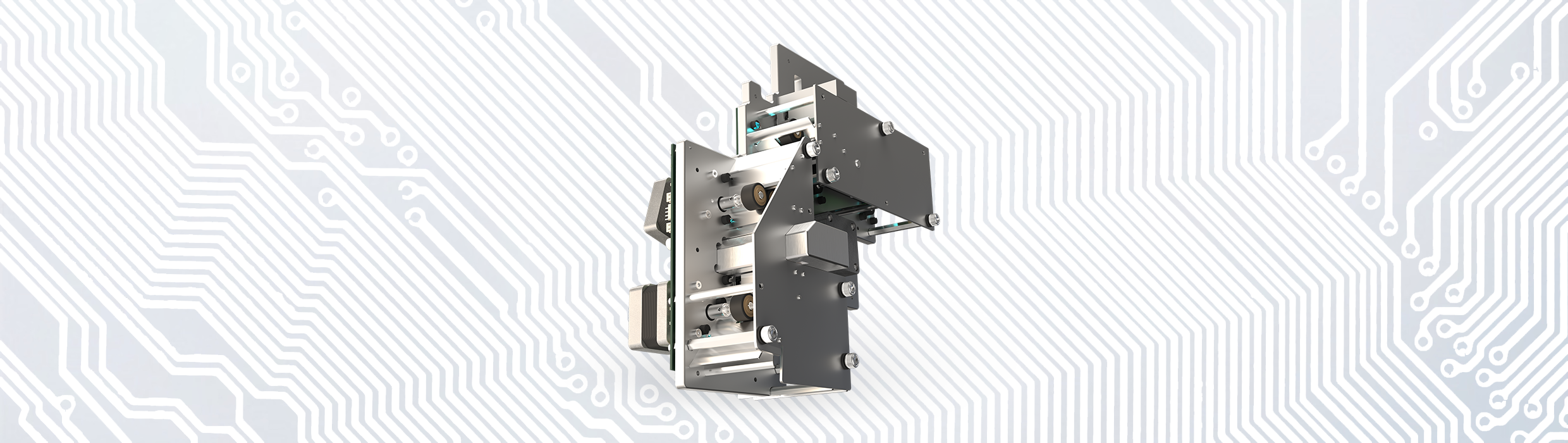

The (RFID) paper ticket dispenser from ddm hopt+schuler was designed for high-volume applications that require fast, secure dispensing of paper tickets. It not only enables the processing of RFID tickets, but also the printing and reading of QR codes. As a result, it offers maximum flexibility and efficiency for a wide range of applications.
Product Information
The RFID paper ticket dispenser 902 from ddm hopt+schuler offers a comprehensive solution for processing and printing contactless Mifare paper tickets in accordance with ISO 14443. The device also enables the printing and reading of QR codes. Equipped with an RFID reader and a thermal printer, the dispenser guarantees efficient and precise processing. Thanks to the double feed, up to 5000 tickets can be processed in accordance with ISO 15457-1. The integrated cutting function separates the tickets gently, resulting in minimal paper dust in the machine. The dispenser can feed in tickets, process them and either dispense them again or deposit them in the machine. It is also possible to temporarily store up to two tickets (optional). Tickets are dispensed either at the front of the dispenser or into the machine's internal collection tray. An additional external antenna connection makes it possible to read contactless cards without having to insert them into the device. The RFID paper tickets can be encoded and printed both as single and multiple tickets. The Ticket Dispenser 902 was specially developed for mobile use in local public transport and has undergone stringent tests, such as vibration tests in accordance with IEC 60068-2-27 and IEC 60068-2-64 to ensure its robustness.
Functions
- Output of (RFID) continuous paper tickets in accordance with ISO 15457-1 TFC size 1, with radii or chamfers
- Processing of contactless paper tickets according to ISO 14443
