Products

Switches plus Card Readers and Ticketing Systems



ddm hopt+schuler provides complete solutions for switches, card readers and ticket systems. Thanks to our innovative modular structure, a large number of variations are available for you to choose from. Our sales team will be happy to advise you on the product that is right for you and your individual needs, using our intelligent part numbering system, to accommodate your distinctive product design. ddm hopt+schuler products offer our customers a unique advantage as we can customize our solutions to meet your product needs. We hope you put your trust in the competence of our practical experts when making your decision for these products. We look forward to serving you.

Select a product

1 Product Group Ticketing systems
2 Product Type Card dispenser
3 Options -
4 Product Card Dispenser 910-Comfort
4

Product

Go a step back
910-C0K00206000 card dispenser kartendispenser 910-comfort

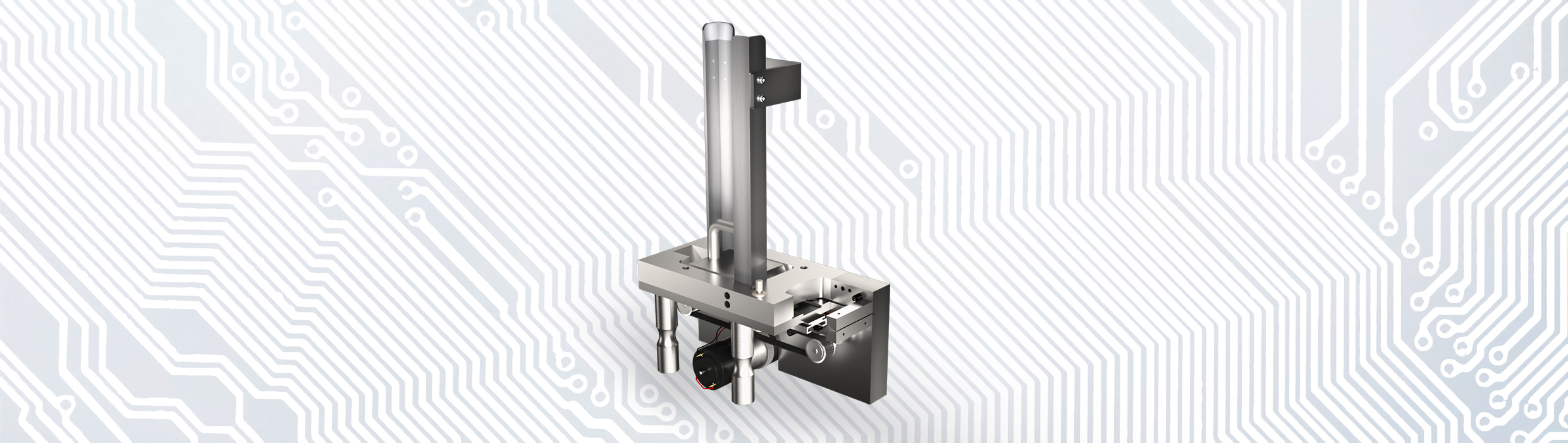

Card Dispenser 910-Comfort

The ddm hopt+schuler card dispenser 910-Comfort is the ideal solution for all kiosk and self-service applications that require reliable and automated issuance of RFID cards.



Product Information

The ddm hopt+schuler card dispenser 910-Comfort is the extension of the basic model. The device has a magazine for 250 cards according to ISO 7810 / ID-1, which can be reduced to 150 cards or expanded to 500 cards. A built-in RFID reader allows you to process contactless cards in accordance with ISO 14443. On request, this reader can be replaced by your own RFID reader. As a result, the card dispenser offers you the greatest possible flexibility when selecting the technology of your RFID cards. The easy assembly of your RFID reader is made possible by a variable plastic socket. The cards are issued at the front of the device after the cards have been separated from the stack using grapple technology. The cards can also be discarded.

Functions
  • Issue of plastic cards according to ISO 7810 / ID-1
  • Processing of contactless cards according to ISO 14443
  • Secure issuance of plastic cards using grapple technology
  • Sensor for display of card magazine empty
  • Sensor for displaying card level
Dimensions
  • With magazine for 130 cards: 210 x 127.5 x 244 mm
  • With magazine for 250 cards: 210 x 127.5 x 344 mm
  • With magazine for 500 cards: 210 x 127.5 x 564 mm
Interfaces
  • RS 232
  • USB
  • TCP / IP
Applications
  • Transportation
  • Access control systems
  • Closed payment systems such as gift cards, bonus systems or in canteens
  • Student cards for multifunctional use
  • Unattended kiosk systems
Samples
  • Samples available within one week
  • SDK-set included
Download
(pdf 1.32 MB)
