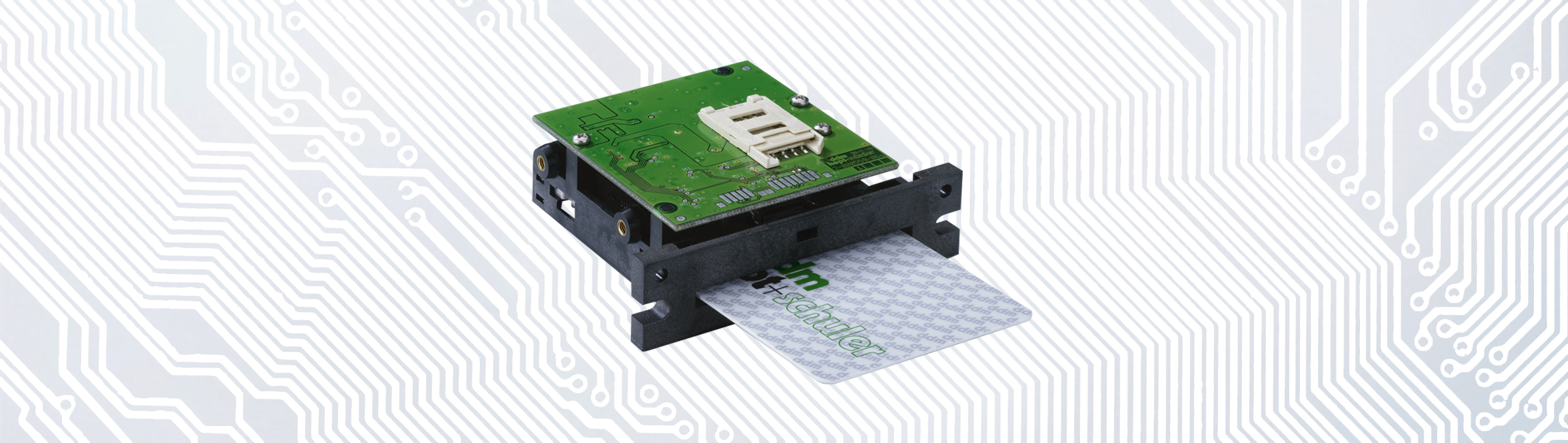

Chip card reader 845

The manual plug-in reader for chip cards 845 is available in a short and a long version. The different lengths mean that the area of the card available for gripping can be varied. The reader offers many variants and can be adapted to your requirements. It is increasingly used in gaming applications or access control systems.



Product Information

During each insertion process, the chip card reader contacts the chip contacts in accordance with ISO 8. The chip contacts are designed to be vandalism-proof and lower when contacted. Due to the open design, dirt falls down through the reader. The standard interfaces are RS-232 and USB. A coin lock or card insertion are available as options. In addition, the smart card reader can be equipped with electronics for contactless RFID processing.



Card Processing / Standard
  • Chip card read and write function / ISO 7816
  • Contactless card reading and writing function / ISO 15693, ISO 14443 A,B
Lifetime
  • Chip contact 500.000 – 1 Mio. cycles (depending on application)
Interface
  • Serial Interface (845-S)
  • USB-Interface(845-U)
Dimensions
  • Short variant: 68 x 83 x 23 mm
  • Long variant: 83,5 x 83 x 23 mm
Options and Variants
  • Coin lock
  • Different bezels
  • Mounting variants
Applications
  • Parking Lot Systems
  • Unmanned Kiosk Systems
  • POS Systems
  • Vending Machines
